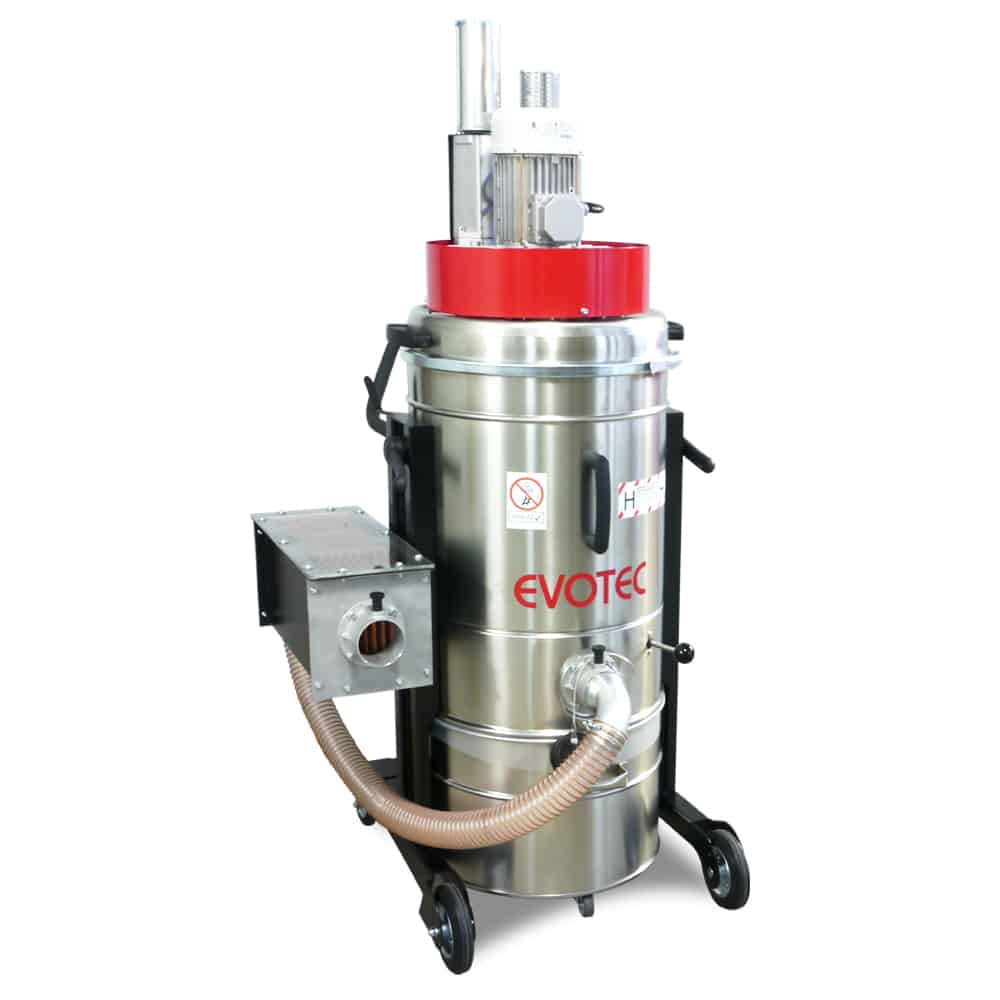

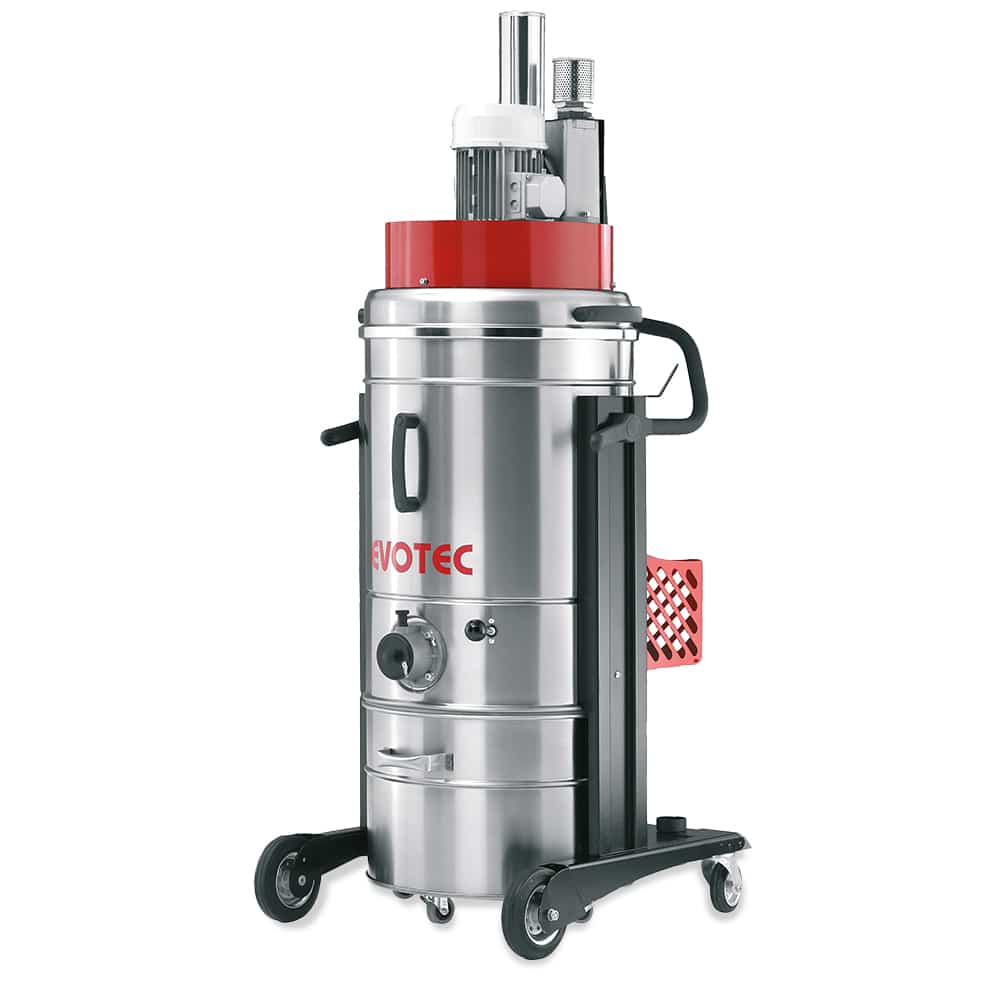

EP 2130 ECO
400 volts—Powerful industrial vacuum cleaner for removing everything from coarse debris to microparticles (μm).
Configurable for Your Process
Filter system, safety features, and accessories that can be customized to your process
Long filter service life
Thanks to its large filter surface area, filter monitoring, and convenient cleaning mechanism
Optimized for 3-shift operation
Sound-insulated and maintenance-free turbine (side-channel compressor) used as a vacuum generator.
Sturdy and durable
, made of V2A stainless steel (1.4301), for parts that come into contact with the product
Explosion-proof design
Explosion-proof safety version for use in ATEX Zone 22
IFA-Certified Safety
DGUV Test Certificate as Proof of the Highest Safety Standards
Areas of application
| Model | EP 2130 ECO | |
|---|---|---|
| Voltage | Volt | 400 |
| Motor power | Watt | 3.000 |
| Max. air volume | m³/h | 320 |
| Negative pressure | mbar | 240/310 max. |
| Filter surface“M” | m² | 2,2 |
| Filter surface “H” (H14) | m² | 2,0 |
| Dirt container | l | 60 |
| Protection class | IP 55 | |
| Sound pressure level | dB(A) | 70 |
| Suction connection | Ø mm | 80 |
| Dimensions (LxBxH) | mm | 830x680x1650 |
| Weight | kg | 100 |
| Dust class M | Art.-Nr. | 251-1030 |
| Dust Class M/Model22 | Art.-Nr. | 251-1031 |
| Dust Class H | Art.-Nr. | 251-1032 |
| Upgrade cartridge filter | Art.-Nr. | 053-3003 |
Powerful industrial vacuum cleaner for picking up all types of dry dust
From coarse dirt to microparticles (μm)
High-quality standards – Product-contact parts made of V2A stainless steel (1.4301)
Well-engineered, sound-attenuated, and maintenance-free turbine (side-channel compressor) designed to generate negative pressure. Suitable for 3-shift operation.
Sturdy, smooth-running chassis for high mobility. Compact, modular design with a high-quality stainless steel debris container (V2A).
Cyclone separators for improved pre-separation of Fine Dust and coarse material.
Rotation direction phase monitor and vacuum limit valve for proper equipment operation.
Quick-connect coupling with locking mechanism and swivel for secure connection of the suction hose.
Configurable Filter System
Filter unit available in either dust class M or H
Dust class M
Durable polyester needle-punched felt filter with a PUR membrane, offering high filtration efficiency for a long service life.
Dust class H
Absolut H14 Cartridge Filter for the Finest Particles and Maximum Safety
Effective filter cleaning: Long filter service life and extended maintenance intervals
Effective, easy-to-use filter cleaning—either manually or using atmospheric pressure—for high filtration efficiency and long operating intervals without interruption.
Filter Monitoring for Maximum Safety
Vacuum gauge for filter monitoring and controlling consumable costs
Tool-Free Filter Replacement
A clean, hassle-free filter change for employees and maintenance staff
Upgrade: "M" Cartridge Filter System with Backwash
3 aluminum-coated, electrically conductive filter cartridges (2.4 m²) with manual atmospheric pressure cleaning
Replacement filter cartridges (3 required per unit):
60 l dirt container
Lowerable V2A stainless steel debris container with smooth-rolling casters for easy disposal of the vacuumed material
Explosion-proof safety version
Designed with electrostatic- -dissipative equipment and components for safe dust extraction in ATEX Zone 22
IFA-Certified Safety (Download Certificate)
DGUV Test: Certified safety by the Institute for Occupational Safety and Health of the German Social Accident Insurance.
Included in delivery:
3.5-meter suction hose (Ø 50 mm) and crevice tool. Power cord length: 8 meters.
Your Partner for Industrial Exhaust Solutions
EVOTEC develops extraction systems and industrial vacuum cleaners for industrial applications and realizes application-specific special solutions in addition to near-series devices. Our systems are designed for process reliability, durability and individual requirements.
